E/P电气转换器 EP10116/10124/10126
压电先导开关型气压调节模块，实现电信号与气压的转换操作。鲁棒化设计高集成度，连续可靠工作，实现气动功率放大器开/关的高速精确控制，将电信号转化为对应的高驱动力或扭矩，实现阀门定位器或压力控制器在任何条件下的位置驱动。先导供气、排气、参考气压独立管路，利用功率放大器的排气稀释先导供气环境，有效抑制压缩空气中的油、水、灰尘。气路和电路独立于外壳，可以防止压缩空气中的水和冷凝水的影响。带防水PCB的接线罩 EP101-PCB附件，取代普通的PCB端子板，可以让EP电气转换器浸入水下1m，保证可靠工作。EP101-PCB防水附件的安装不影响EP电气转换器原有的尺寸。
 |

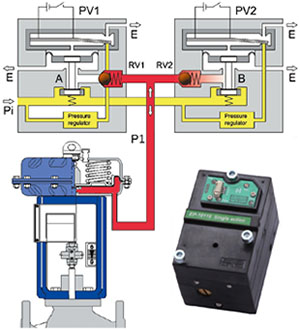

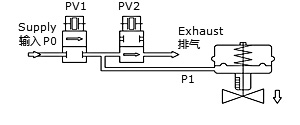

EP10116气动放大器 单作用/安全位置 Single acting/Fail safe 断电或无压缩空气，可以保阀门可靠关闭或开启 Order No： EP10116 |
||||||||
| PV1 | PV2 | P1 | P2 | Actuator | |||||
| ON | ON | In | Out | Open | |||||
| ON | OFF | Invalid Operation | |||||||
| OFF | ON | Hold | Hold | Hold | |||||
| OFF | OFF | Out | In | Close | |||||
 |
|||||||||

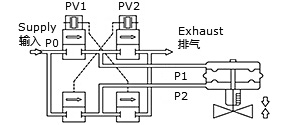

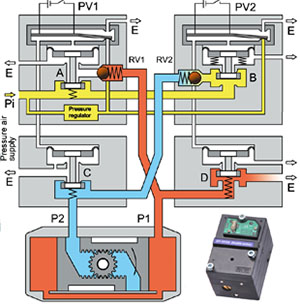

| EP10124气动放大器 双作用/安全位置 Single acting/Fail safe 断电或无压缩空气，可以保阀门可靠关闭或开启 Order No： EP10124 |
 |
||||||||
| PV1 | PV2 | P1 | P2 | Actuator | |||||
| ON | ON | In | Out | Open | |||||
| ON | OFF | Invalid Operation | |||||||
| OFF | ON | Hold | Hold | Hold | |||||
| OFF | OFF | Out | In | Close | |||||
 |
|||||||||
 |

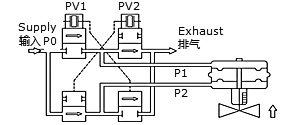

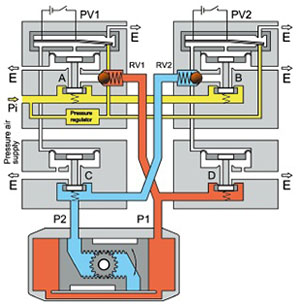

EP10126气动放大器 单双作用/三断保护 Single & Double acting/Fail in place 断电或无压缩空气，阀门保持在原来的位置 Order No： EP10126 |
||||||||
| PV1 | PV2 | P1 | P2 | Actuator | |||||
| ON | ON | Invalid Operation | |||||||
| ON | OFF | In | Out | Close | |||||
| OFF | ON | Out | In | Open | |||||
| OFF | OFF | Hold | Hold | Hold | |||||
 |
|||||||||
| EP10116/EP10124/EP10126 Penumatic Amplifier |  |
||||
| Parameter | Sysmbol | Unit | Description | ||
| General Features | |||||
| System | Piezo valve as pilot | ||||
| Housing | Plastic | ||||

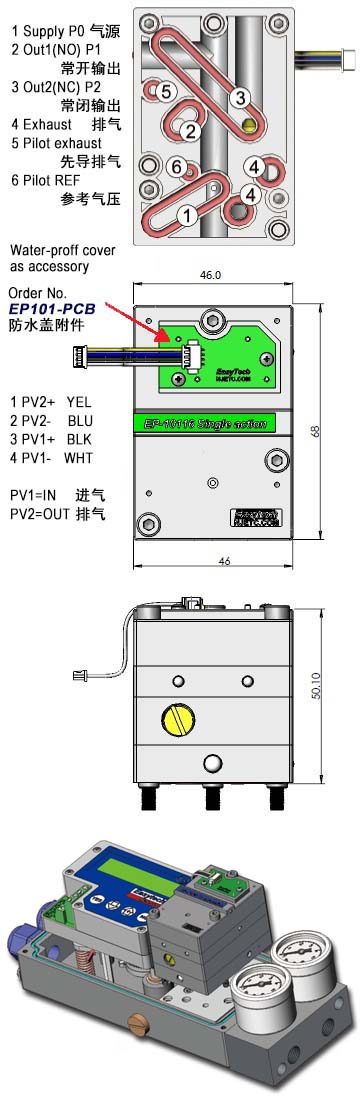

| Mounting | See drawing | ||||
| Pneumatic connection | (All same) | ||||
| Dimension | LxWxH | mm | 68*46*53 | ||
| Weight | g | 190 | |||
| Pneumatic Characteristics | |||||
| Supply pressure | Min/Max | bar | 1.4-7.0 | ||
| Flow | Qn | l/min | 130@6bar | ||
| Medium | Filtered air @30µM | ||||
| no or minimal oil | |||||
| (max 30mg/m³) | |||||
| Electrical Characteristics | |||||
| Operationg voltage | VDC | 24 | |||
| Capacity | C | nF | <100 | ||
| Switching current | Id | µA | 10 | ||
| Holding current | Id | µA | 0 | ||
| PWM control | % | 12-80mS | |||
| Switching time | ms | On :<20@10% discharge | |||
| ms | OFF:<20@90% discharge | ||||
| Temperature range | Min/Max | ℃ | -30 to +60 | ||
| Fail in Place 三断保护 (保位：断信号，断气，断电) | |||||
| Hold time at 25% | T | h | >0.5 (Drop to 15%) | ||
| Hold time at 50% | T | h | >0.5 (Drop to 40%) | ||
| Hold time at 75% | T | h | >0.5 (Drop to 65%) | ||
| * Actual value see test report |
|||||
| Test Condition | Linear actuator | ||||
| mm | Travel:25 | ||||
| bar | Sring:0.4-2.0 | ||||
