ESPOS Smart Electropneumatic Positioner
High-integrated pneumatic amplifier with piezo pilot control actuator quickly and high accuracy positioning, ESPOS series positioner can resist or absorb the electric noise from signal cable or outside, the back-light LCD is useful when Installation location light is insufficient . ESPOS positioner assembled to single/double action actuator with fail safe or fail in place , 4-20mA position feedback, two channels limit switch, HART protocol can be as options. Input signal:4-20mA two-wire, without other power;supply: 1.4-7.0bar; flow: 130 l/min....
-

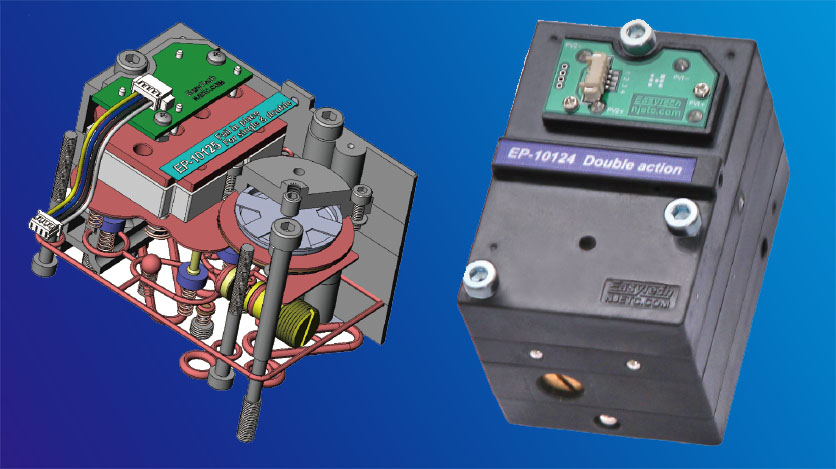

Pneumatic amplifie EP10116/10124/10126
Piezo valve work as the pilot of EP10116/10124 pneumatic amplifier, E/P achieve electrical signals to pressure conversion. It work at switch mode. Robust design of high integration, has the features of faster reponse, energy-saving, high frequency operation. Ultra low consumption based on piezoelectric technology, It has advantages for intrinsically safe product design....
-

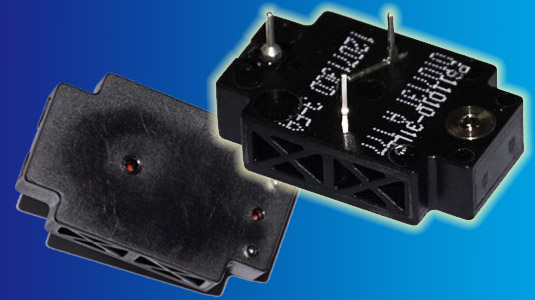

3/2 Way Mini Piezo Valve
Piezo-cermamic chip bended when excitated by voltage, it has no heating elements, more than 60 million life times . Small dimension 30x19x7.7mm with 6g weight. Output a proportional pressure from -1.0 to 1.2bar and provide max. 1.5L/Min flow rate. Ultra low power consumption at 10μA/24V when action and 0μA keeping and 2ms response time, it can be used for pilot of pressure / vacuum / flow control valve....
-
Proportional pressure/flow regulator ,TECNO Basic/Plus/Vacum
TECNO regulator series is a proportional pressure control valves based on piezo valve as a pilot, piezo valve has higher dynamic performance and regulation accuracy at lower power cost, its min power consumption 30mW. The main valve provide high flow and exhaust capacity, max input pressure up to 14bar, flow to 1600 l/min....
-
Mini pressure regulator
Mini pressure regulator disk with 5μ filter, diameter Ø30mm thickness 13mm, 8g weight. Supply pressure range up to 10bar. It can adjust a stable pressure ( 0-2.5bar/2.5％ accuracy) with max flow 5/Min, also can be used in vacuum field. Pressure adjustment by manual, no exhaust design. It act as pilot supplier....
-
EP11-2/3 pneumatic amplifier with aluminum case
EP11-2/3 pneumatic amplifier manufactured by CNC with aluminum alloy, suitable for personalized products , extended function, customized. Piezo valve as pilot, convert electrical signals to pressure, work at switch mode....
-

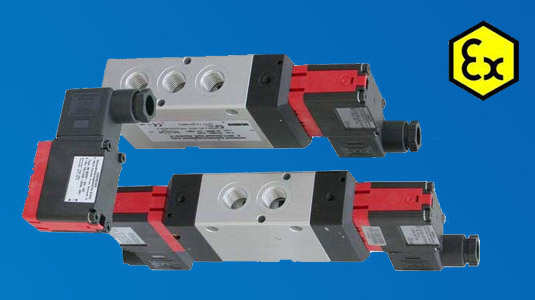

ATEX Piezo switching valves, Intrinsicall-safe 0.005W
ATEX Piezo switching valves equipped progressive piezoelectric valve P8 as a pilot valve, minimum of electrical power regulate highly pressure and flow. ATEX Piezo switching valves suit for applied in intrinsically-safe field and battery device , its consumption was 4.5mw, response time less than 20ms, also can be designed as intrinsically safe, high speed control valve....
