Series P10 -- NanJing EasyTech Automatic Technology Co., Ltd.

Characteristics	Symbol	Unit	Description
General Features
System			Directly controlled (from system) proportional control or switching poppet valve with Piezoactor, overlapping

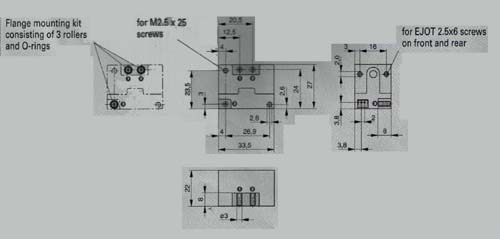

Mounting			Metal screws (part of scope of supply)
Connection			Flange or nose nozzle (3 mm)
Port size		NW	ca. 0.33
Weight		g	20
Flow direction			On: from 1 to 2 Off: from 2 to 3 (3/2-way valve)
Installation position			In any position
Medium and ambient temperature range	Vmin Vmax	°C °C	0 +50	Other temperatures on request
Medium			Filtered air (30μ) ,other gases or fluides possible on request - dewpoint 10K under ambient temperature
Pneumatic Characteristics
Valve nominal pressure	PN	bar	0.1bar	0.3bar	0.6bar	1.2bar	2.0bar
Input pressure range	P1min/max	bar	0.05-0.15	0.2-0.3	0.5-0.7	1.1-1.3	1.8-2.2
Output pressure range (proportional Version)	P2min/max	bar	0-0.1	0-0.3	0-0.6	0-1.2	0-2.0
Flowrate 3/2 way models	Q	l/min	0.5	0.9	1.5	1.5	1.4
Leakage@20℃			inlet air side: <20% of Q outlet air side:<20% of Q
Electrical Characteristics
Operating voltage	UL	V	+/- 24 DC *control advice to be considered
Holding energy	P	W	0
Connection			2-pin connector
Electrical protection		IP	20

3/2 Way Chip Valves (Piezo Miniature Switching Valve) - Series P10*
Version	Symbol	Order Instructions
Version	Symbol	Type	Order No.
3/2 Switching valve normally closed 0.1 bar version		P10-3S-NG-D-010	PS11400-010-A
3/2 Switching valve normally closed 0.3 bar version		P10-3S-NG-D-030	PS11400-030-A
3/2 Switching valve normally closed 0.6 bar version		P10-3S-NG-D-060	PS11400-060-A
3/2 Switching valve normally closed 1.2 bar version		P10-3S-NG-D-120	PS11400-120-A
3/2 Switching valve normally closed 2.0 bar version		P10-3S-NG-D-200	PS11400-200-A
* on request: 2/2 way switching valve, normally closed 3/2 way proportional control valve, normally closed 2/2 way proportional control valve, normally closed
