How It Works:

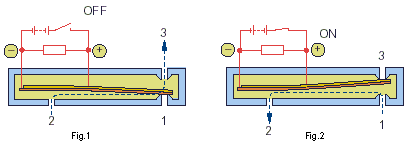

The central element is a Piezo-ceramic bending element which is built up of several layers, rather like a bimetallic strip. When an electrical voltage is applied, this element bends a few hundredths of a millimetre. This bending allows air to enter the piezo valve through port 1 to port 2 (Fig. 2). In the unactuated mode, the air can flow from port 2 to port 3 (Fig. 1). Depending on the voltage applied, the lesser or greater bending of the element generates an analogue pressure signal at port 2. The piezo valve can therefore be used either as a switching valve or as a proportional valve. Optimized versions for either switching or proportional use are available.

p9-1
P9-2




Standard Versions
  • Proportional valve
  • Switching valve
  • - NC
Special Versions
  • Special pressure ranges on request
Characteristics                             Pressures are quoted as gauge pressure
Characteristics Symbol Unit Description
General Features
System     Directly actuated 3/2 way poppet valve with Piezoactor, overlaping, normally closed (NC)
Housing     Plastic
Mounting     Flange (see dimensional drawing)
Port size     = NW 0.33
Weight   g 6
Flow direction     On: from 1 to 2
Off: from 2 to 3
Installation position     in any position

Ambient
temperature range

Vmin
Vmax
°C
°C

-10
 60

Note:
When using below freezing point it is
necessary to consult us.
(-30°C to +80°C on request)
Pneumatic Characteristics
Operating pressure PN bar 1.2 (other pressures between 0 and 2.0 bar on request)
Nominal flow@20℃ QN l/min 1.5
Medium     Filtered air (5μ) *
- dewpoint 10K under ambient temperature
Leakage@20℃ QL l/min On: 0.35 max
Off: 0.30 max
Electrical Characteristics
Operating voltage UL V +/-24 DC
control advice to be considered
Capacity C nF < 100
Switching energy E mWs 0.029
Holding energy P W 0
Switching time t ms < 2
Connection     Contact pins – Ø0.8 mm
 * other fluids on request
3/2 Way Piezo Miniature Valves and Pilot Valves - Series P9
Description

Symbol

Order Instructions
Type Order No.
Switching valve, normally closeed (+pole on the left side) type1 P9-NG-S-L PS11010-11L
Proportional valve, normally cloesed (+pole on the right and left side) type1 P9-NG-P-LR PS11010-31LR
