Prop. Pressure Regulating Valve Series PR-U-OEM---Hoerbiger.com
A piezo valve is used as the pilot control element. The piezo valve generates a pilot pressure in the pilot chamber of the main valve proportional to the control voltage.
The supply for the piezo valve is tapped off from the control air connection 1 and passed through a pressure regurlator and filter.
Note:
The valve for the PR-U-OEM series fulfils the requirements for approval as an intrinsically saft device when used with an appropriate controller.
U/P-Diagrm
The operating voltage range of the
valve may fluctuate due to temper-
ature or longterm effects
| Characteristics | Symbol | Unit | Description |
| General Features | |||
| Type | Membrane pressure regulating valve, pneumatic pilot control with piezo valve, some overlap | ||
| Mounting | Flange (see dim.drawing) | ||
| Pipe Connection | Flange | ||
| Port size | NW2.5 | ||
| Weight (mass) | kg | 0.100 | |
| Flow direction | On: from 1 to 2 Off: from 2 to 3 (* |
||
| Installation position | In any position | ||
Medium and ambient |
Vmin. /max. |
°C |
-30 to +80 Note: When using below freezing point it is necessary to consult us. - dewpoint 10K under ambient temperature |
| Medium | Dry or filtered air (30μ) , no or minial oil mist lubrication (max. 30mg/m^3) |
||
| Pneumatic Characteristics | |||
| Nominal pressure | Pmin./max. | bar | 6 |
| Operating pressure | Pmin./max. | bar | 1.5 - 100 |
| Nominal flow | QN | l/min | 200 (from 6 to 5 bar) |
| Nominal size | mm | 2.6 | |
| Electrical Characteristics | |||
| Input voltage | U | V | +/- 24 DC (** *control advice to be considered |
| Capacity | C | nF | < 100 |
| Switching energy | E | mWS | 0.029 |
| Holding energy | P | W | 0 |
| Connection | Connecting cable 200 mm 2-pin AMP connector Grid size 2.54 |
||
| Electrical protection | IP | 20 | (* outlet air not included (** The device should only be used in a closed control loop. |
| Description |
Symbol |
Order Instructions |
|
| Type | Order No. | ||
| Proportional pressure regulating valve |
PR-U-OEM | PS11193-B | |
| Base plate G1/8 | PS11193-A-01 | ||

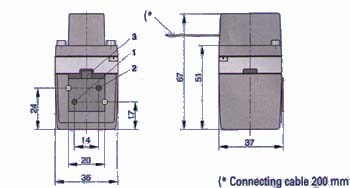

Pressure Regulating Valve
Type:PR-U-OEM
Base Plate G1/8
